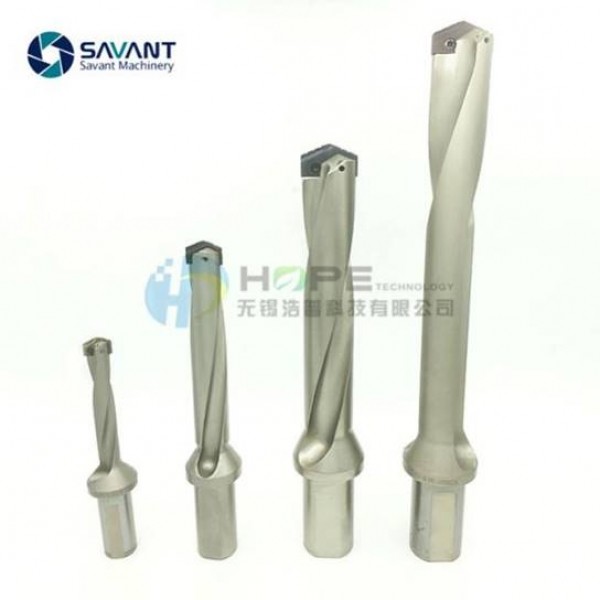

13-60mm 2D-5D Spade Drill SAVANTEC Carbide High Speed Steel Drill Bit Spade Drill Insert
product description
Savantec SPADE DRILLS: it is an upgraded substitute for the traditional Fried Dough Twists drill, and can be applied to CNC equipment and various traditional equipment, such as vertical drill, radial drill, etc
The Savantec drill blade is divided into two materials: hard alloy and high-speed steel, and the tool holder installed is also different and cannot be interchanged
It is recommended to use high-speed steel blades on vertical drills and rocker drills, but it is not recommended to use hard alloy blades because the machine speed is low, the rigidity is poor, and the gap is large, which can easily cause the hard alloy blades to break.
Savant SPADE DRILLS advantages:
The shovel drill bit (blade) is made of cobalt containing high-speed steel and powder high-speed steel, with strong cutting performance.
All savantec drill bits have a central water outlet hole, and it is recommended to use a cooling system with high pressure and flow rate as much as possible. This can greatly extend the service life of the blades and also be more conducive to chip removal.
The blade is equipped with a chip breaking groove, and the iron filings are in a fragmented shape, which is conducive to chip removal and improves safety
It can be processed to the end at one time, without the need to retreat like ordinary high-speed steel Fried Dough Twists drill, and has higher efficiency
Supports deep hole machining with a dimensional accuracy of less than 10 threads, and can be used as a precision machining tool.
Drilling smoothness 1.6-3.2Ra
Recommended linear speed is 20-40 meters per minute, with a double-edged blade (different from U-drills) and a double-edged feed rate of F0.2-0.6mm per revolution
Savantec shovel drill features:
Savantec SPADE DRILLS can be customized according to customer drawings and can be made into non-standard drill bits with chamfers, countersunk holes, steps, etc
The clamping handle includes three types: side fixed, straight handle, and Mohs
Savantec SPADE DRILLS standard processing range: 9.05-114.00mm
Savantec SPADE DRILLS depth can reach: 30 * D (30 times diameter)
Each specification of drill pipe can be equipped with a range of drill bit blades
The SPADE DRILLS bit (blade) has different types of blades for processing steel parts, cast iron, stainless steel, aluminum alloy, etc
Two types of shovel drill blade materials: high-speed steel coating and hard alloy coating
Eliminates the cost of grinding drill bits and buying a drill bit for a single specification hole
The Savantec drill blade has a self centering function, with symmetrical and uniform force distribution on both edges, suitable for processing deep holes. For those with a length to diameter ratio of less than 5 times the diameter, Savantec fast U-drills (U-drills) are preferred. For those exceeding 5 times the diameter, Savant shovel drills are recommended.
When the cooling pressure is high enough, the flow rate is large enough, and the chip removal is smooth, the SavantecSPADE DRILLS can continuously drill holes without the need to retreat for chip removal.
product specification
| | |
| 型号说明:SD为铲钻总称呼,S/H分别为直槽/螺旋槽 | |
| 00系列(φ13.0-φ17.5) | |
| 型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 | |
| SD00S-23-XP20 | 22 | 47.6 | 50.4 | 97.6 | 20 | 50 | 1/8 | M2.5*6 | T8 | |
| SD00S-35-XP20 | 35 | 63.5 | 66.3 | 113.5 | 20 | 50 | 1/8 | M2.5*6 | T8 | |
| SD00H-64-XP20 | 63 | 92.1 | 94.9 | 142.1 | 20 | 50 | 1/8 | M2.5*6 | T8 | |
| SD00H-114-XP20 | 114 | 142.9 | 145.7 | 192.9 | 20 | 50 | 1/8 | M2.5*6 | T8 | |
| SD00H-178-XP20 | 178 | 206.4 | 209.1 | 256.4 | 20 | 50 | 1/8 | M2.5*6 | T8 | |
| SD00S-240-XP20 | 240 | 268.6 | 271.3 | 318.6 | 20 | 50 | 1/8 | M2.5*6 | T8 | |
| SD00S-295-XP20 | 295 | 323.9 | 326.7 | 373.9 | 20 | 50 | 1/8 | M2.5*6 | T8 | |
| SD00S-387-XP20 | 387 | 416 | 418.8 | 466 | 20 | 50 | 1/8 | M2.5*6 | T8 | |
| 05系列(φ15.5-φ17.5) | |
| 型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 | |
| SD05S-23-XP20 | 22 | 47.6 | 50.4 | 97.6 | 20 | 50 | 1/8 | M2.5*6 | T8 | |
| SD05S-35-XP20 | 35 | 63.5 | 66.3 | 113.5 | 20 | 50 | 1/8 | M2.5*6 | T8 | |
| SD05H-64-XP20 | 63 | 92.1 | 94.9 | 142.1 | 20 | 50 | 1/8 | M2.5*6 | T8 | |
| SD05H-114-XP20 | 114 | 142.9 | 145.7 | 192.9 | 20 | 50 | 1/8 | M2.5*6 | T8 | |
| SD05H-178-XP20 | 178 | 206.4 | 209.1 | 256.4 | 20 | 50 | 1/8 | M2.5*6 | T8 | |
| SD05S-240-XP20 | 240 | 268.6 | 271.3 | 318.6 | 20 | 50 | 1/8 | M2.5*6 | T8 | |
| SD05S-295-XP20 | 295 | 323.9 | 326.7 | 373.9 | 20 | 50 | 1/8 | M2.5*6 | T8 | |
| SD05S-387-XP20 | 387 | 416 | 418.8 | 466 | 20 | 50 | 1/8 | M2.5*6 | T8 | |
| 10系列(φ17.6-φ24.4) | |
| 型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 | |
| SD10S-48-XP25 | 48 | 75.8 | 79.4 | 131.8 | 25 | 56 | 1/8 | M3*8 | T8 | |
| SD10S-67-XP25 | 67 | 107.2 | 110.7 | 163.1 | 25 | 56 | 1/8 | M3*8 | T8 | |
| SD10H-118-XP25 | 118 | 154.8 | 158.4 | 210.8 | 25 | 56 | 1/8 | M3*8 | T8 | |
| SD10H-168-XP25 | 168 | 205.6 | 209.2 | 261.6 | 25 | 56 | 1/8 | M3*8 | T8 | |
| SD10H-218-XP25 | 218 | 255.3 | 258.9 | 311.3 | 25 | 56 | 1/8 | M3*8 | T8 | |
| SD10H-270-XP25 | 270 | 307.2 | 310.8 | 363.2 | 25 | 56 | 1/8 | M3*8 | T8 | |
| SD10S-365-XP25 | 365 | 402.2 | 405.8 | 458.2 | 25 | 56 | 1/8 | M3*8 | T8 | |
| SD10S-457-XP25 | 457 | 494.5 | 498.1 | 550.5 | 25 | 56 | 1/8 | M3*8 | T8 | |
| SD10S-569-XP25 | 569 | 602.5 | 606.1 | 658.5 | 25 | 56 | 1/8 | M3*8 | T8 | |
| 15系列(φ22.0-φ24.4) | |
| 型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 | |
| SD15S-57-XP25 | 57 | 88.5 | 92.1 | 144.5 | 25 | 56 | 1/8 | M3*8 | T8 | |
| SD15S-67-XP25 | 67 | 107.2 | 110.7 | 163.1 | 25 | 56 | 1/8 | M3*8 | T8 | |
| SD15H-118-XP25 | 118 | 154.8 | 158.4 | 210.8 | 25 | 56 | 1/8 | M3*8 | T8 | |
| SD15H-168-XP25 | 168 | 205.6 | 209.2 | 261.6 | 25 | 56 | 1/8 | M3*8 | T8 | |
| SD15H-218-XP25 | 218 | 255.3 | 258.9 | 311.3 | 25 | 56 | 1/8 | M3*8 | T8 | |
| SD15H-270-XP25 | 270 | 307.2 | 310.8 | 363.2 | 25 | 56 | 1/8 | M3*8 | T8 | |
| SD15S-365-XP25 | 365 | 402.2 | 405.8 | 458.2 | 25 | 56 | 1/8 | M3*8 | T8 | |
| SD15S-457-XP25 | 457 | 494.5 | 498.1 | 550.5 | 25 | 56 | 1/8 | M3*8 | T8 | |
| SD15S-569-XP25 | 569 | 602.5 | 606.1 | 658.5 | 25 | 56 | 1/8 | M3*8 | T8 | |
| 20系列(φ24.5-φ35.0) | |
| 型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 | |
| SD20S-57-XP32 | 57 | 88.5 | 92.1 | 148.5 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| SD20S-86-XP32 | 86 | 128.6 | 132.2 | 188.6 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| SD20H-137-XP32 | 137 | 179.4 | 183 | 239.4 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| SD20H-187-XP32 | 187 | 230.2 | 233.8 | 290.2 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| SD20H-237-XP32 | 237 | 279.9 | 283.5 | 339.9 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| SD20H-289-XP32 | 289 | 331.8 | 335.4 | 391.8 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| SD20H-400-XP32 | 400 | 442.8 | 446.4 | 502.8 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| SD20S-400-XP32 | 400 | 442.8 | 446.4 | 502.8 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| SD20S-511-XP32 | 511 | 554.1 | 557.7 | 614.1 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| SD20S-692-XP32 | 692 | 735.1 | 738.7 | 795.1 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| 25系列(φ30.0-φ35.0) | |
| 型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 | |
| SD25S-92-XP32 | 92 | 123.4 | 127 | 183.4 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| SD25S-86-XP32 | 86 | 128.6 | 132.2 | 188.6 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| SD25H-137-XP32 | 137 | 179.4 | 183 | 239.4 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| SD25H-187-XP32 | 187 | 230.2 | 233.8 | 290.2 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| SD25H-237-XP32 | 237 | 279.9 | 283.5 | 339.9 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| SD25H-289-XP32 | 289 | 331.8 | 335.4 | 391.8 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| SD25H-400-XP32 | 400 | 442.8 | 446.4 | 502.8 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| SD25S-400-XP32 | 400 | 442.8 | 446.4 | 502.8 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| SD25S-511-XP32 | 511 | 554.1 | 557.7 | 614.1 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| SD25S-692-XP32 | 692 | 735.1 | 738.7 | 795.1 | 32 | 60 | 1/4 | M3.5*10 | T15 | |
| 30系列(φ35.1-φ47.9) | |
| 型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 | |
| SD30S-76-XP40 | 76 | 125 | 129.8 | 195 | 40 | 70 | 1/4 | M5*10 | T20 | |
| SD30S-121-XP40 | 121 | 173 | 177.8 | 243 | 40 | 70 | 1/4 | M5*10 | T20 | |
| SD30H-165-XP40 | 165 | 217.5 | 222.3 | 287.5 | 40 | 70 | 1/4 | M5*10 | T20 | |
| SD30H-210-XP40 | 210 | 261.9 | 266.7 | 331.9 | 40 | 70 | 1/4 | M5*10 | T20 | |
| SD30H-260-XP40 | 260 | 312.3 | 317.1 | 382.3 | 40 | 70 | 1/4 | M5*10 | T20 | |
| SD30S-349-XP40 | 349 | 401.6 | 406.4 | 471.6 | 40 | 70 | 1/4 | M5*10 | T20 | |
| SD30H-349-XP40 | 349 | 401.6 | 406.4 | 471.6 | 40 | 70 | 1/4 | M5*10 | T20 | |
| SD30S-559-XP40 | 559 | 611.1 | 615.9 | 681.1 | 40 | 70 | 1/4 | M5*10 | T20 | |
| SD30S-787-XP40 | 787 | 839.7 | 844.5 | 909.7 | 40 | 70 | 1/4 | M5*10 | T20 | |
| 35系列(φ42.0-φ47.9) | |
| 型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 | |
| SD35S-76-XP40 | 76 | 125 | 129.8 | 195 | 40 | 70 | 1/4 | M5*10 | T20 | |
| SD35S-121-XP40 | 121 | 173 | 177.8 | 243 | 40 | 70 | 1/4 | M5*10 | T20 | |
| SD35H-165-XP40 | 165 | 217.5 | 222.3 | 287.5 | 40 | 70 | 1/4 | M5*10 | T20 | |
| SD35H-210-XP40 | 210 | 261.9 | 266.7 | 331.9 | 40 | 70 | 1/4 | M5*10 | T20 | |
| SD35H-260-XP40 | 260 | 312.3 | 317.1 | 382.3 | 40 | 70 | 1/4 | M5*10 | T20 | |
| SD35S-349-XP40 | 349 | 401.6 | 406.4 | 471.6 | 40 | 70 | 1/4 | M5*10 | T20 | |
| SD35H-349-XP40 | 349 | 401.6 | 406.4 | 471.6 | 40 | 70 | 1/4 | M5*10 | T20 | |
| SD35S-559-XP40 | 559 | 611.1 | 615.9 | 681.1 | 40 | 70 | 1/4 | M5*10 | T20 | |
| SD35S-787-XP40 | 787 | 839.7 | 844.5 | 909.7 | 40 | 70 | 1/4 | M5*10 | T20 | |
| 40系列(φ48.0-φ65.28) | |
| 型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 | |
| SD40S-130-XP40 | 130 | 179.4 | 184.2 | 249.4 | 40 | 70 | 1/4 | M5*15 | T20 | |
| SD40H-232-XP40 | 232 | 281 | 285.8 | 351 | 40 | 70 | 1/4 | M5*15 | T20 | |
| SD40S-350-XP40 | 350 | 399.2 | 404 | 469.2 | 40 | 70 | 1/4 | M5*15 | T20 | |
| SD40H-350-XP40 | 350 | 399.2 | 404 | 469.2 | 40 | 70 | 1/4 | M5*15 | T20 | |
| SD40S-422-XP40 | 422 | 471.5 | 476.3 | 541.5 | 40 | 70 | 1/4 | M5*15 | T20 | |
| SD40H-422-XP40 | 422 | 471.5 | 476.3 | 541.5 | 40 | 70 | 1/4 | M5*15 | T20 | |
| SD40S-525-XP40 | 525 | 574.2 | 579 | 644.2 | 40 | 70 | 1/4 | M5*15 | T20 | |
| SD40S-625-XP40 | 625 | 674.7 | 679.5 | 744.7 | 40 | 70 | 1/4 | M5*15 | T20 | |
| SD40S-879-XP40 | 879 | 928.7 | 933.5 | 998.7 | 40 | 70 | 1/4 | M5*15 | T20 | |
| 45系列(φ56.0-φ65.28) | |
| 型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 | |
| SD45S-130-XP40 | 130 | 179.4 | 184.2 | 249.4 | 40 | 70 | 1/4 | M5*15 | T20 | |
| SD45H-232-XP40 | 232 | 281 | 285.8 | 351 | 40 | 70 | 1/4 | M5*15 | T20 | |
| SD45S-350-XP40 | 350 | 399.2 | 404 | 469.2 | 40 | 70 | 1/4 | M5*15 | T20 | |
| SD45H-350-XP40 | 350 | 399.2 | 404 | 469.2 | 40 | 70 | 1/4 | M5*15 | T20 | |
| SD45H-422-XP40 | 422 | 471.5 | 476.3 | 541.5 | 40 | 70 | 1/4 | M5*15 | T20 | |
| SD45S-422-XP40 | 422 | 471.5 | 476.3 | 541.5 | 40 | 70 | 1/4 | M5*15 | T20 | |
| SD45S-525-XP40 | 525 | 574.2 | 579 | 644.2 | 40 | 70 | 1/4 | M5*15 | T20 | |
| SD45S-625-XP40 | 625 | 674.7 | 679.5 | 744.7 | 40 | 70 | 1/4 | M5*15 | T20 | |
| SD45S-879-XP40 | 879 | 928.7 | 933.5 | 998.7 | 40 | 70 | 1/4 | M5*15 | T20 | |
| 50系列(φ65.3-φ89.08) | |
| |
| |
| 型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 | |
| SD50S-171-XP50 | 171 | 235 | 240 | 315 | 50 | 80 | 1/2 | M6*15 | T25 | |
| SD50S-350-XP50 | 350 | 414 | 419 | 494 | 50 | 80 | 1/2 | M6*15 | T25 | |
| SD50S-660-XP50 | 660 | 724 | 729 | 804 | 50 | 80 | 1/2 | M6*15 | T25 | |
| 70系列(φ89.1-φ114.48) | |
| |
| |
| |
| 型号 | L1 | L2 | L3 | L | D1 | L4 | G | 螺丝 | 扳手 | |
| SD70S-200-XP50 | 200 | 275 | 280 | 355 | 50 | 80 | 1/2 | M6*15 | T25 | |
| SD70S-400-XP50 | 400 | 475 | 480 | 555 | 50 | 80 | 1/2 | M6*15 | T25 | |
| SD70S-800-XP50 | 800 | 875 | 880 | 955 | 50 | 80 | 1/2 | M6*15 | T25 | |
